تفاصيل المنتج:
|
| ماركة: | ZH | مادة: | Q355B/NM400/Q420 |
|---|---|---|---|
| طلب: | مرفق الحفريات | لون: | طلب العميل |
| ضمان: | 3 أشهر | مناسب: | 6-90T حفارة |
| التعبئة: | حالة خشبية | سعة: | 0.25-6.8CBM |
| OEM: | قابل للتجول | حالة: | 100 ٪ جديد |
| خدمة ما بعد البيع المقدمة: | الدعم عبر الإنترنت |

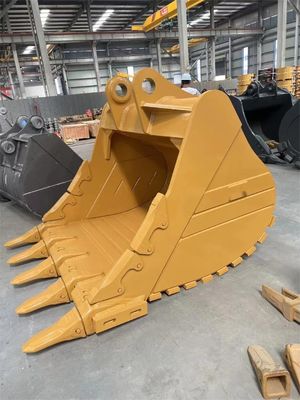

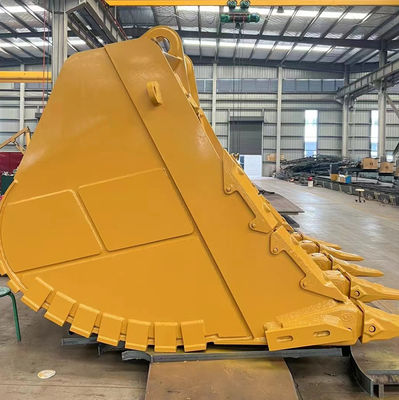

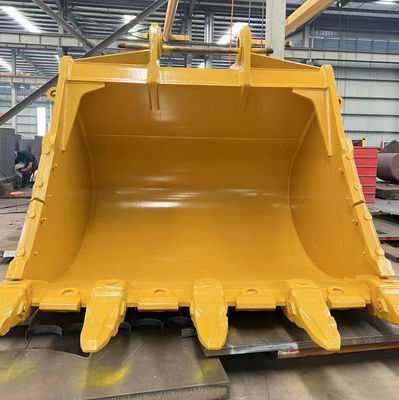

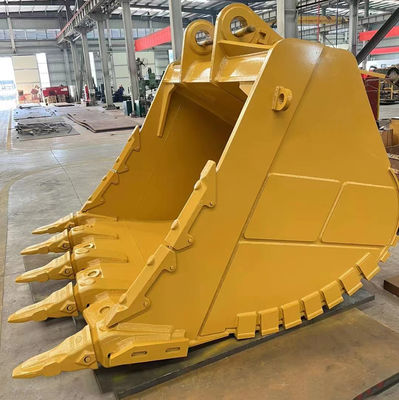

Customizable Rock Bucket Excavator Bucket Heavy Duty Mining Rock Digger Bucket With Teeth for Backhoe Loader and Construction
I. Features of Excavator Rock Bucket
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
II. Details of Excavator Rock Bucket
Advantages of Excavator Rock Bucket
1. Sidewall with anti-collision block guard, reduce wearness
2. Adopt DIAMOND bucket teeth and teeth base
3. Anti-wear teeth base blocks
4. Materials: NM360,Hardox500,Q355B optional
5. Add wear resistance blocks
6. Double-layer wear-resistant plate to reinforce
7. The overall opening is narrow, designed according to the original design of Cat bucket, which improves the excavation force and is suitable for stonework.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Excavator Heavy Duty Bucket Parameter Reference
|
Bucket capacity (M3) |
excavator model (Ton) |
weight (KG) |
| 0.8m3 | 18-20T | 860kg |
| 1.2 | 20-22T | 1200kg |
| 1.3 | 22-25T | 1300kg |
| 1.4-1.7 | 30-35T | 1850kg |
| 1.8 | 35-38T | 2000kg |
| 2-2.5m3 | 40-45T | 2500kg |
| 2.6-2.7 | 45-50T | 3000kg |
| 3-3.3.8 | 50-90T | 6000kg |
| 4-4.5 | 70-90T | 854800kg |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
III. Describing the working conditions suitable for an excavator rock bucket
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
What is the purpose of beveling the long boom arm plate?
Most welding machines commonly used in the industry have a penetration depth of only 3mm. Since the thickness of our long arm plate is at least 8mm, without beveling, the welder would not be able to fully penetrate through the entire joint. This would result in weak welds, leading to issues such as weld cracking in the future.
We employ mechanical beveling, whereas other factories rely on manual beveling (as shown in the figure).
Large Floor-Standing Double-Sided Boring and Milling Lathe:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Manufacturing Co., Ltd.
Founded in 2018, Kaiping Zhonghe Machinery Co., Ltd. specializes in the production of customized excavator booms and attachments. Our facility in Jiangmen City boasts a steel structure workshop of 21,000 m³, equipped with cutting-edge processing technology. Our skilled team includes over 100 technicians and 50 welders with considerable experience. Supported by 30 senior designers and a high-tech R&D team with over 100 patents, we maintain rigorous quality standards, capable of producing around 800 sets per year.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q: Are you a manufacturer?
A: We are a manufacturer/supplier of excavator arms and attachments. We have a super large factory. The factory area is several times that of our competitors. It is the largest excavator attachment factory in Guangdong Province. It has complete production equipment and its products have been exported to more than 60 countries around the world.
Q: Why choose Zhonghe over any other companies?
A: We have a professional production team and design team to provide each customer with high-quality and personalized customer service to ensure correctness, so we have good reputation in China, and our annual sales are among the best in our country.
Q: What can I get from you?
A: 1. The product is made of Q355B steel, a superior and sturdy material on the market, and the steel is cut with a 45-degree slope and then gas welded, making it more sturdy and 30% longer lifetime than normal materials.
2. All accessories are included, no additional purchases are required. Professional online video guides installation to make installation worry-free.
3. Lifetime free online customer service consultation if you have any questions.
Q: How do I start to order?
A: Firstly, talk to our sales about your machine model, working conditions, special needs and deadline. Then our sales will give you proposals FYR. You will receive a quotation ASAP after confirming the proposal.
Q: What are your terms of payment?
A: We prefer T/T (50/50) through Ali Credit Insurance as a trial order.
Q: Are you always delivered on time?
A: We can't promise about the sea freight but what we can do is shorten our lead time while keeping the same quality level. So there will not be any problem even if the sea freight is delayed for a couple of days.
